X-Y displacement measuring tool

X-Y displacement measuring tool

Learn more

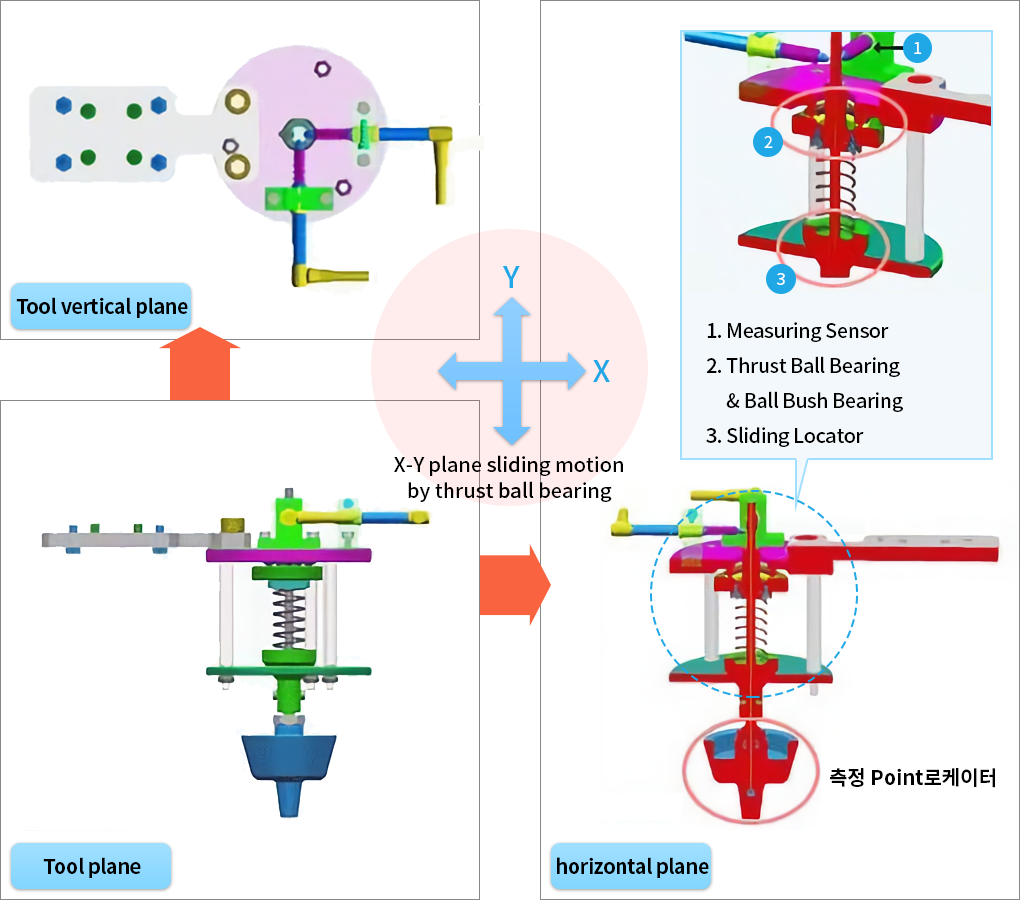

Measurement principle of
hole displacement measuring tool

Measurement Specifications of
Hole Displacement Measuring Tool

  • Measurement item

    Measure point changes within the maximum range of +/- 5mm from the measurement point (reference point) on the X-Y plane

  • Measurement tolerance

    Degree of Tool repeatability (0.01mm) + Degree of Robot repeatability (0.05mm) = 0.06mm

Application example

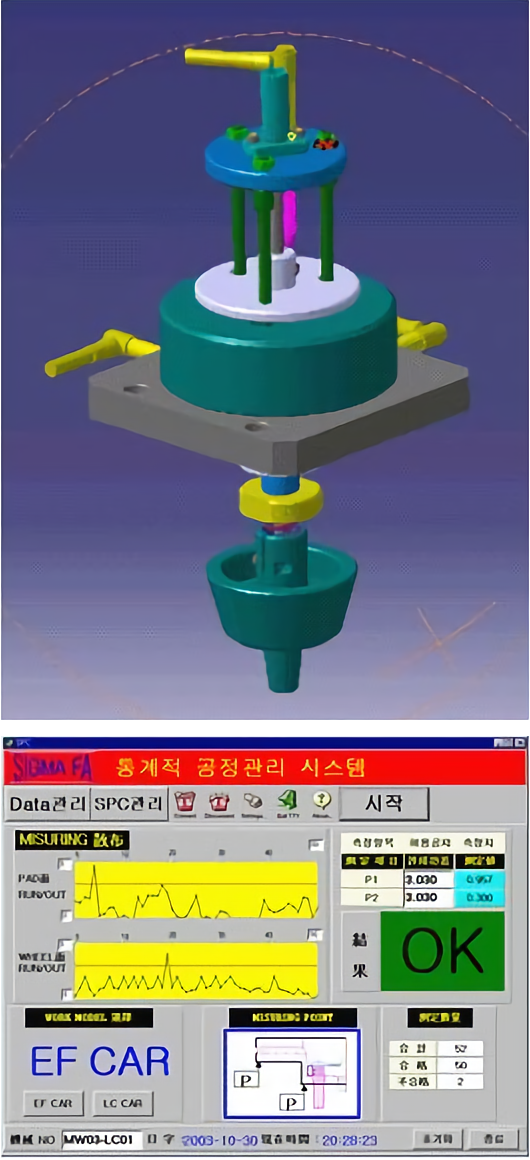

Measuring TOOL using LVDT

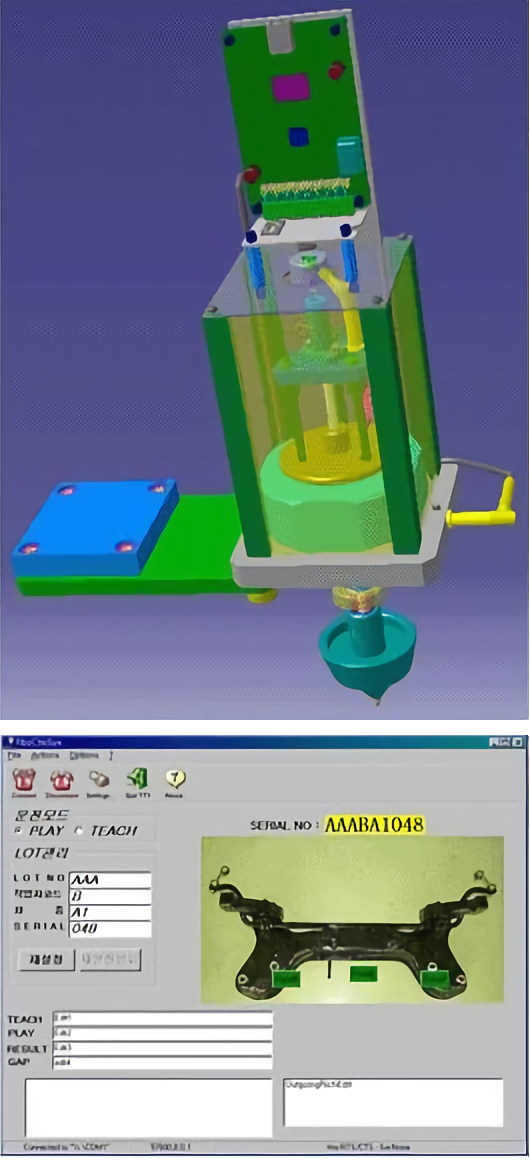

Measuring TOOL using VISION SYSTEM
